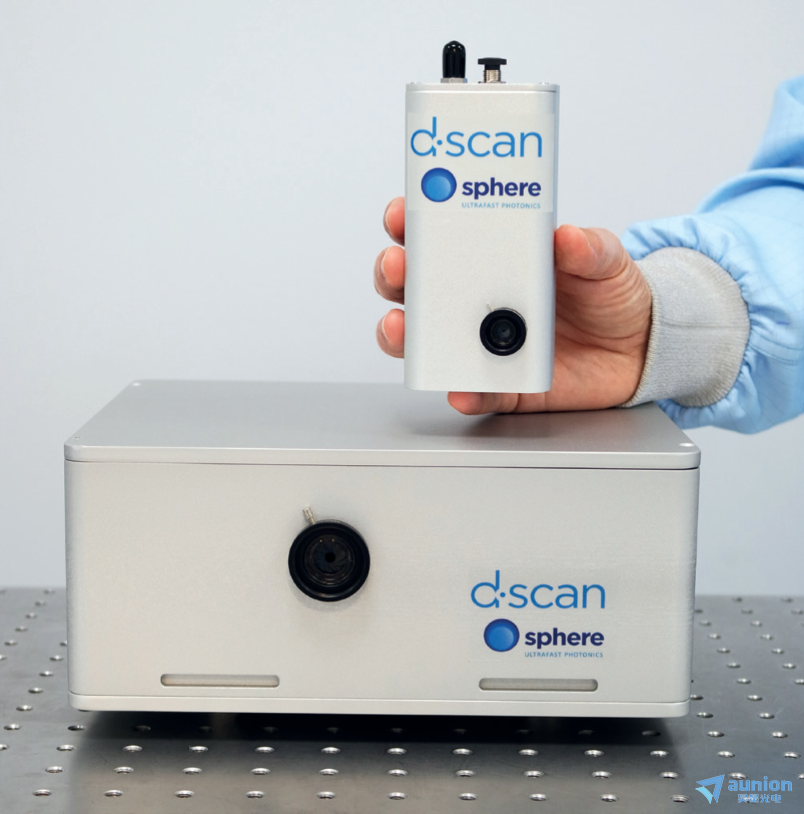

飞秒脉冲测量和压缩器d-scan
昊量光电推出超快激光系统及空心光纤压缩器的理想测量和控制工具,飞秒脉冲测量与压缩器d-scan,是一种内联,紧凑和高性能的设备,用于同时测量和压缩即使是蕞苛刻的超快脉冲。超短脉冲测量仪d-scan既可以作为一个独立的系统使用,也可以与现有的光脉冲压缩器集成。它处理宽带振荡器,放大器,OPA和空心光纤压缩器。在不到一分钟的时间内,就能实现将光束耦合到d-scan中,完整的测量需要不到10秒的时间。由此产生的d-scan轨迹非常直观,专有的反演算法提供了压缩超快脉冲的全电场的快速准确反演。
另有飞秒脉冲测量仪d-cycle及单发测量仪d-shot可选,详情请下载数据单
测量案例— — 振荡器

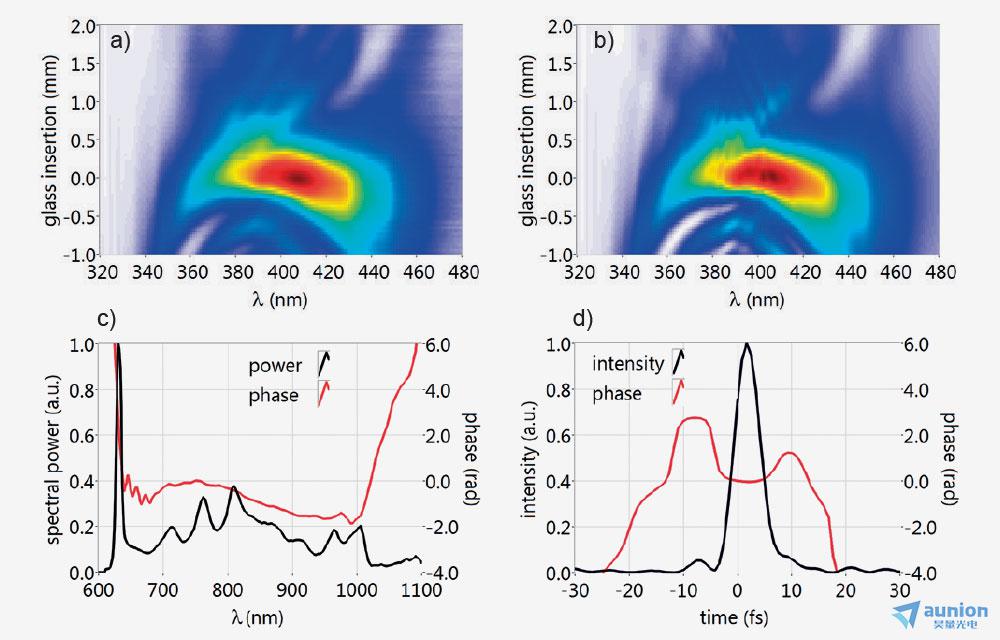

少周期Ti:蓝宝石振荡器:测量(a)和反演(b) d-scan迹线。(c)实测光谱(黑色)和反演光谱相位(红色)。(d)反演到的时间剖面(黑色)和相位(红色)。脉冲持续时间为5.5±0.1 fs (FWHM)。
欲知详情,请浏览:
M. Miranda, P. Rudawski, C. Guo, F. Silva, C. Arnold, T. Binhammer, H. Crespo, and A. L’Huillier, “Ultrashort laser pulse characterization from dISPersion scans: a comparison with SPIDER,” in CLEO: 2013, OSA Technical Digest (online) (Optical Society of America, 2013), paper JTh2A.31 (San Jose, CA, USA, 9-14 June 2013).
测量案例— — 空心光纤压缩器

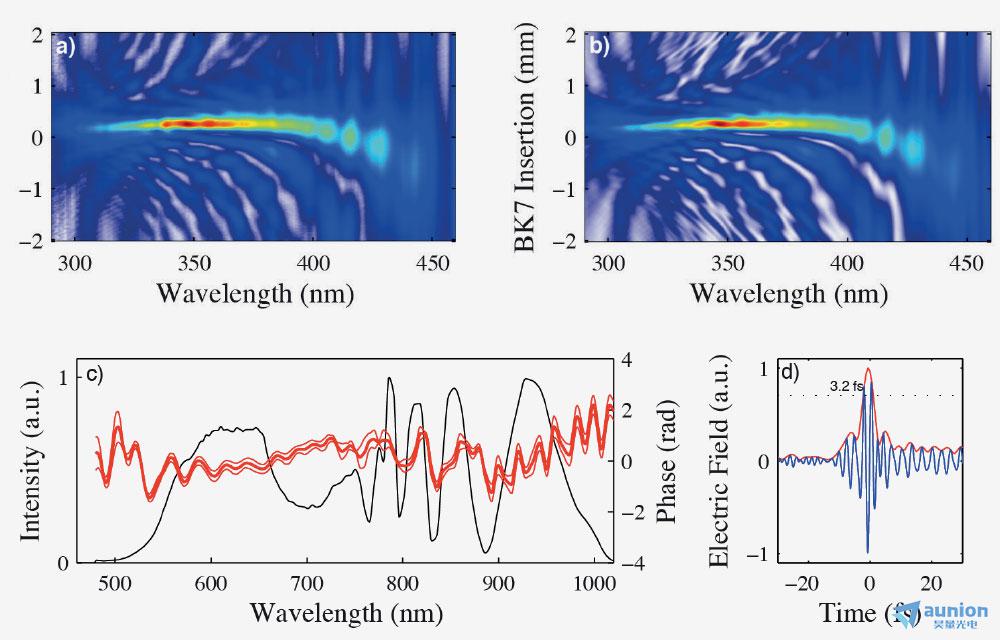

单周期空心光纤压缩机:测量(a)和f反演(b) d-scan迹线。(c)实测光谱(黑色)和反演光谱相位标准差(红色)。(d)反演到的楔形插入的时间剖面,使脉冲持续时间蕞小化,对应于3.2 fs(在740 nm处1.3个周期)。
欲知详情,请浏览:
F. Silva, M. Miranda, B. Alonso, J. Rauschenberger, V. Pervak, and H. Crespo, “Simultaneous compression, characterization and phase stabilization of GW-level 1.4 cycle VIS-NIR femtosecond pulses using a single dispersion-scan setup,” Opt. Express 22, 10181-10191 (2014)
飞秒脉冲测量和压缩器d-scan技术规格
d-scan B (a) | d-scan R (b) | d-scan NIR (c) | d-scan 1.5 | |
Wavelength range | 450-1000nm 500-1050nm | 600-1100nm | 700-1400nm | 1500-1700nm |
Pulse duration (FTL) | 2.5fs to 10fs | sub 5fs to 20 fs | 2.5fs to 60fs | 60fs to 200fs |
Chirp range | ±375 fs2 | ±720 fs2 | ±600 fs2 | ±4000 fs2 |
Repetition rate | 1 kHz and above (d) | |||
Input polarization | Linear | |||
Max input aperture | 20 mm | 10 mm | ||
Required input energy | >100 pJ @ 80 MHz 1 µJ @ 1 kHz | |||
Compression module dimensions (WxLxH) | 317 x 336 x 97 mm | 250 x 250 x 100 mm | ||
Measuring head dimensions (WxLxH) | 57 x 57 x 116mm |
(a) 为空心光纤压缩器应用优化
(b) 为Ti:sapphire 振荡器和OPCPA应用优化
(c) 为OPCPA应用优化
(d) 较低的重复率可能与外部同步选项
可根据需求提供真空兼容系统
文献列表:
Characterizing ultrashort laser pulses with second harmonic dispersion scans
I. Sytcevich, C. Guo, S. Mikaelsson, J. Vogelsang, A. Viotti, B. Alonso, R. Romero, P. T. Guerreiro, Í. J. Sola, A. L’Huillier, H. Crespo, M. Miranda, and C. L. Arnold1
Vol. 38, Issue 5,pp. 1546-1555(2021) / Journal of the Optical Society of America B
https://opg.optica.org/josab/fulltext.cfm?uri=josab-38-5-1546&id=450190
Single-shot d-scan technique for ultrashort laser pulse characterization using transverse second-harmonic generation in random nonlinear crystals
F. J. Salgado-Remacha, B. Alonso, H. Crespo, C. Cojocaru, J. Trull, R. Romero, M. López-Ripa, P. T. Guerreiro, F. Silva, M. Miranda, A. L’Huillier, C. L. Arnold, AND Í. J. Sola
Vol. 45, No. 14 / 15 July 2020 / Optics Letters
https://opg.optica.org/ol/fulltext.cfm?uri=ol-45-14-3925&id=433292
Detection and elimination of pulse train In situ temporal measurement of ultrashort laser pulses at full power during high-intensity laser–matter interactionsinstabilities in broadband fibre lasers using dispersion scan
H. Crespo, T. Witting, M. Canhota, M. Miranda, and J.W. G. Tisch
Optica, Vol. 7,Issue 8, pp. 995-1002(2020)
https://www.osapublishing.org/optica/abstract.cfm?uri=optica-7-8-995
Detection and elimination of pulse train instabilities in broadband fibre lasers using dispersion scan
B. Alonso, S. Torres-Peiró, R. Romero, P. T. Guerreiro, A. Almagro-Ruiz, H. Muñoz-Marco, P. Pérez-Millán and H. crespo
Scientific Reports | (2020) 10:7242 | https://doi.org/10.1038/s41598-020-64109-x
https://www.nature.com/articles/s41598-020-64109-x
All-optical measurement of the complete waveform of OCTave-spanning ultrashort light pulses
M. Miranda, F. Silva, L. Neoricic, C. Guo, V. Pervak, M. Canhota, A. S. Silva, I. J. Sola, R. Romero, P. T. Guerreiro, A. L’Huillier, C. L. Arnold And H. Crespo
Vol. 44, No. 2 / 15 January 2019 / Optics Letters
https://www.osapublishing.org/ol/abstract.cfm?uri=ol-44-2-191
SyncRGB-FLIM: synchronous fluorescence imaging of red, green and blue dyes enabLED by ultra-broadband few-cycle laser excitation and fluorescence lifetime detection
C. Maibohm, F. Silva, E. Figueiras, P. T. Guerreiro, M. Brito, R. Romero, H. Crespo and J. B. Nieder
Vol. 10, No. 4 | 1 Apr 2019 | BIOMEDICAL OPTICS EXPRESS 1892
https://www.osapublishing.org/boe/abstract.cfm?uri=boe-10-4-1891
Evaluation of the Coherent Artifact in Ultrashort Laser Pulses using D-scan and its Application to Broadband Fiber Lasers
B. Alonso, S. Torres-Peiró, R. Romero, P. T. Guerreiro, H. Muñoz-Marco, P. Pérez-Millán, H. Crespo
019 Conference on Lasers and Electro-Optics Europe and European Quantum Electronics Conference, OSA Technical Digest (OSA, 2019), paper cf_p_48
https://www.osapublishing.org/abstract.cfm?uri=CLEO_Europe-2019-cf_p_48
Propagation effects in the characterization of 1.5-cycle pulses by XPW dispersion scan
A. Tajalli, M. Ouille, A. Vernier, F. Bohle, E. Escoto, S. Kleinert, R. Romero, J. Csontos, U. Morgner, G. Steinmeyer, H. Crespo, R. Lopez Martens, and T. Nagy
IEEE Journal of Selected Topics in Quantum Electronics ( Volume: 25 , Issue: 4 , July-Aug. 2019 )
https://ieeexplore.ieee.org/document/8447506
Strategies for achieving intense single-cycle pulses with in-line post-compression setups
F. Silva, B. Alonso, W. Holgado, R. Romero, J. San Roman, E. Conejero Jarque, H. Koop, V. Pervak, H. Crespo, and I. J. Sola
Vol. 43, No. 2 / January 15 2018 / Optics Letters
https://www.osapublishing.org/ol/abstract.cfm?uri=ol-43-2-337
Universal route to optimal few- to single-cycle pulse generation in hollow-core fiber compressors
E. Conejero Jarque, J. San Roman, F. Silva, R. Romero, W. Holgado, M. A. Gonzalez-Galicia, B. Alonso, I. J. Sola and H. Crespo
Scientific Reports | (2018) 8:2256 | DOI:10.1038/s41598-018-20580-1
https://www.nature.com/articles/s41598-018-20580-1
Self-calibrating d-scan: measuring ultrashort laser pulses on-target using an arbitrary pulse compressor
Benjamín Alonso, Íñigo J. Sola and Helder Crespo
ScIeNtIFIc RepoRtS | (2018) 8:3264 | DOI:10.1038/s41598-018-21701-6
https://www.nature.com/articles/s41598-018-21701-6
Generation and in-situ measurement of the full electric field of near-single-cycle light pulses by CEP dispersion-scan
F. Silva, R. Romero, M. Miranda, P. Guerreiro, M. Canhota, H. Koop, V. Pervak, I. J. Solá, and H. Crespo
(2018) Ultrafast Optics 2017 In Proceedings of SPIE – The International Society for Optical Engineering 10606. p.25-25
https://www.spiedigitallibrary.org/conference-proceedings-of-spie/10606/1060601/Ultrafast-Optics-2017-Abstract-Book/10.1117/12.2310152.full?SSO=1
A compact single-shot d-scan setup for the characterization of few-cycle laser pulses
M. Louisy, C. Guo, L. Neoric, S. Zhong, A. L’Huillier, C. L. Arnold, and M. Miranda
Vol. 56, Issue 32,pp. 9084-9089(2017) / Applied Optics
https://opg.optica.org/ao/fulltext.cfm?uri=ao-56-32-9084&id=376731
Monolithic single-shot dispersion-scan: a new tool for real-time measurement and optimization of femtosecond pulses
Francisco Silva, Íñigo J. Sola, Helder Crespo, Rosa Romero, Miguel Miranda, Cord L. Arnold, Anne L’Huillier, Jose Trull, Crina Cojocaru
2017 European Conference on Lasers and Electro-Optics and European Quantum Electronics Conference, (OSA, 2017), paper CF_11_3.
https://www.osapublishing.org/abstract.cfm?uri=CLEO_Europe-2017-CF_11_3
carrier-envelope-phase insensitivity in high-order harmonic generation driven by few-cycle laser pulses
C. Herna ́ndez-Garc ́ıa,∗ W. Holgado, L. Plaja, B. Alonso, F. Silva, M. Miranda, H. Crespo and I. J. Sola
10 Aug 2015 | Vol. 23, No. 16 | DOI:10.1364/OE.23.021497 | OPTICS EXPRESS 21497
https://www.osapublishing.org/oe/abstract.cfm?uri=oe-23-16-21497
Single-shot implementation of dispersion-scan for the characterization of ultrashort laser pulses
D. Fabris, W. Holgado, F. Silva, T. Witting, J. W. G. Tisch, and H. Crespo
14 Dec 2015 | Vol. 23, No. 25 | DOI:10.1364/OE.23.032803 | OPTICS EXPRESS 32803
https://www.osapublishing.org/oe/abstract.cfm?uri=oe-23-25-32803
Compression of CEP-stable multi-mJ laser pulses down to 4 fs in long hollow fibers
Frederik Böhle, Martin Kretschmar, Aurélie Jullien, Mate Kovacs, Miguel Miranda, Rosa Romero, Helder Crespo, Uwe Morgner, Peter Simon, Rodrigo Lopez-Martens and Tamas Nagy
Laser Physics Letters 06/2014; 11(9):095401
http://iopscience.iop.org/1612-202X/11/9/095401;jsessionid=6F899613B8CB152FC520F4CB0033E674.c1
Simultaneous compression, characterization and phase stabilization of GW-level 1.4 cycle VIS-NIR femtosecond pulses using a single dispersion-scan setup
Francisco Silva, Miguel Miranda, Benjamín Alonso, Jens Rauschenberger, Vladimir Pervak and Helder Crespo
5 May 2014 | Vol. 22, No. 9 | DOI:10.1364/OE.22.010181 | OPTICS EXPRESS 10181
http://www.opticsinfobase.org/oe/abstract.cfm?uri=oe-22-9-10181
Ultrashort laser pulse characterization from dispersion scans: a comparison with SPIDER
Miguel Miranda, Piotr Rudawski, Chen Guo, Francisco Silva, Cord L. Arnold, Thomas Binhammer, Helder Crespo and Anne L’Huillier
Lasers and Electro-Optics (CLEO), 2013 Conference on, 9-14 June 2013
http://www.opticsinfobase.org/abstract.cfm?uri=CLEO_SI-2013-JTh2A.311
Near to mid-IR ultra-broadband third harmonic generation in multilayer graphene: few-cycle pulse measurement using THG dispersion-scan
Francisco Silva, Miguel Miranda, Stephan Teichmann, M Baudish, Mathieu Massicotte, Frank Koppens, Jens Biegert and Helder Crespo
CLEO: Science and Innovations, 2013/6/9, Pages CW1H. 5
http://www.opticsinfobase.org/abstract.cfm?uri=CLEO_SI-2013-CW1H.5
Measuring few-cycle laser pulses: a comparative study between dispersion- scan and FROG
Francisco Silva, Miguel Miranda and Helder Crespo
Lasers and Electro-Optics Europe (CLEO EUROPE/IQEC), 2013 Conference on and International Quantum Electronics Conference, 12-16 May 2013
http://www.opticsinfobase.org/abstract.cfm?URI=IQEC-2013-CFIE_P_17
Characterization of sub-two-cycle pulses from a hollow-core fiber compressor in the spatiotemporal and spatiospectral domains
Benjamín Alonso, Miguel Miranda, Francisco Silva, Vladimir Pervak, Jens Rauschenberger, Julio San Román, Íñigo J. Sola and Helder Crespo
Appl. Phys. B 112(1), 105–114 (2013)
http://link.springer.com/article/10.1007%2Fs00340-013-5406-5
Characterization of broadband few-cycle laser pulses with the d-scan technique
Miguel Miranda, Cord L. Arnold, Thomas Fordell, Francisco Silva, Benjamín Alonso, Rosa Weigand, Anne L’Huillier and Helder Crespo
13 August 2012 / Vol. 20, No. 17 / OPTICS EXPRESS 18732
http://www.opticsinfobase.org/oe/abstract.cfm?uri=oe-20-17-18732
Spatiotemporal characterization of few-cycle laser pulses
Benjamín Alonso, Miguel Miranda, Íñigo J. Sola and Helder Crespo
30 July 2012 / Vol. 20, No. 16 / OPTICS EXPRESS 17880
http://www.opticsinfobase.org/oe/abstract.cfm?uri=oe-20-16-17880
Simultaneous compression and characterization of ultrashort laser pulses using chirped mirrors and glass wedges
Miguel Miranda, Thomas Fordell, Cord Arnold, Anne L’Huillier and Helder Crespo
2 January 2012 / Vol. 20, No. 1 / OPTICS EXPRESS 688
http://www.opticsinfobase.org/oe/abstract.cfm?uri=oe-20-1-688
