便携式质谱仪

  • 便携式质谱仪
便携可靠,灵敏度高,质谱分析的理想选择!

所属类别:材料分析设备 » 质谱仪

所属品牌:

产品负责人:

姓名:王工(Karl)

电话:186 1603 9606(微信同号)

邮箱:kangjun-wang@auniontech.com

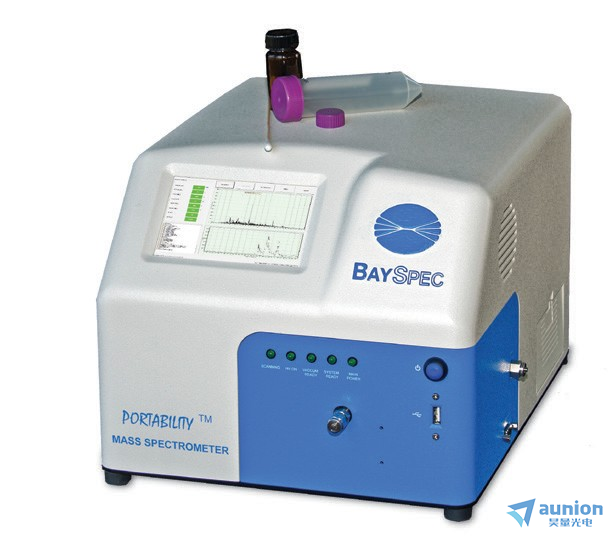

便携式质谱仪

BaySpec新型线性离子阱质量分析仪重量轻、体积小,是市场上高灵敏度的便携式设备,便携式质谱仪具有ppt水平检测限。所有仪器均配备两个用于低压和大气取样的样品入口。所有BaySpec质谱仪均与实时电离方法兼容,包括电子碰撞(EI)、热脱附(TD)、电喷雾电离(ESI)、大气压化学电离(APCI)以及任何其他环境电离技术,如DART和DESI。这些非常紧凑的仪器便携式质谱仪易于操作和维护,适合各种批量或痕量现场实时检测。


便携式质谱仪产品特点:


■   新型离子阱技术                            ■   结构紧凑,重量轻

■   灵敏度高                                       ■   质量范围大 50-1200amu

■   兼容多种离子化方法                     ■   进样方便,操作简单


便携式质谱仪指标参数:




Specification                                   Portability™                                                                                              Continuity



Detection Limit



<10 parts-per-billion  (ppb)



<100 parts-per-trillion (ppt)



Mass Range



m/z = 50 – 650 amu



m/z = 50 – 1200 amu



Mass Resolution



0.49 amu (FWHM)



0.49 amu (FWHM)



MS/MS Capability



Yes, including data intelligent MS/MS



Yes, including data intelligent MS/MS



Ion Polarity



Positive and negative



Positive and negative



Sample Introduction/ Ionization

Atmospheric pressure inlet (API)

Thermal desorption coupled with electrospray ionization (TD-ESI)

Atmospheric pressure chemical ionization (APCI)

Electron impact (El)

Customizable to user-desired ionization methods

Atmospheric pressure inlet (API)

Thermal desorption coupled with electrospray ionization (TD-ESI)

Atmospheric pressure chemical ionization (APCI)

Electron impact (El)

Customizable to user-desired ionization methods



Mass Analyzer



Miniature Linear Ion Trap



Miniature Linear Ion Trap



Embedded PC



7Touchscreen, with Windows® 7



10Touchscreen, with Windows® 7



External PC Interface



WiFi, USB2.0



WiFi, USB 2.0



Remote Control



via WiFi



via WiFi



Export Data Format



CSV



CSV



Spectral Searching



Compatible with NIST EI library or user defined library



Compatible with NIST EI library or user defined library



Power



100-240 VAC, 50/60 Hz, 72W, Battery option available



100-240 VAC, 50/60 Hz, 72W, Battery option available



Operating Temperature



-5°C to +45°C



-5°C to +45°C



Weight



22 lbs. (10 kg)



44 lbs. (20 kg)



Size (W x H x L)



13 in × 9 in × 16 in (33 cm × 23 cm × 41 cm)



13 in × 13 in × 17 in (33 cm × 33 cm × 43 cm)

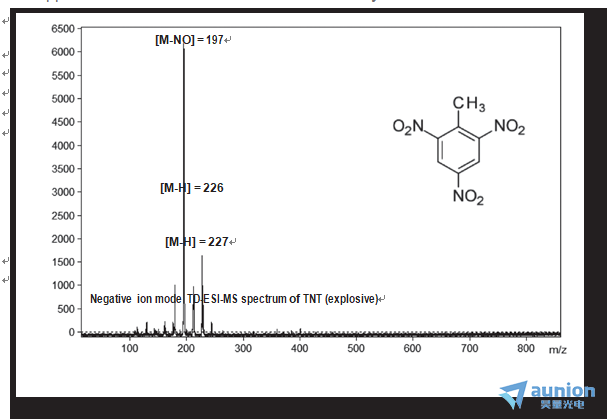

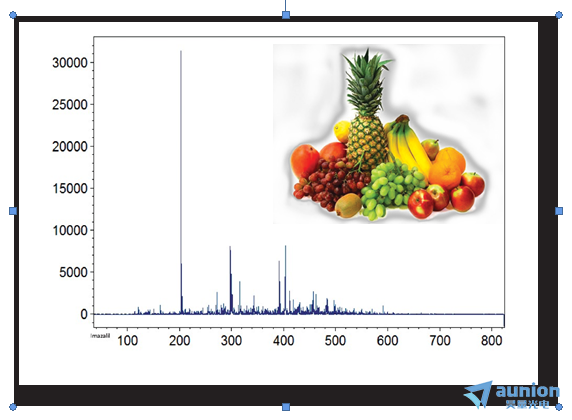

便携式质谱仪应用图例:




应用领域:


▅   医药卫生        ▅   食品安全        ▅   环保监测       ▅   毒品检测        ▅   石油化工         ▅   生物科研
